Over the last few years, projectors have quietly split into two very different camps. On one side are the compact lifestyle models that aim for portability and simplicity. On the other are the serious home theater machines designed to anchor a dedicated movie room. The Valerion VisionMaster Max sits firmly in the latter category.
This is a large, premium projector designed for people who care deeply about picture quality and installation flexibility. It is not something meant to bounce between rooms or throw up a quick movie night on the patio. Instead, the VisionMaster Max feels built for the kind of setup where a screen stays on the wall and the projector becomes a permanent part of the room.
Valerion positions the VisionMaster Max as the flagship model in its lineup, and after spending time digging into its capabilities, it becomes clear that this projector is aiming at enthusiasts. It combines a single-chip DLP imaging system with an RGB triple-laser light engine, a combination meant to deliver extremely wide color reproduction while addressing some of the traditional limitations of DLP technology.
The result is a projector that promises big brightness, deep color saturation, fast gaming response times, and installation flexibility that goes beyond what most living-room projectors offer.
Design & Build

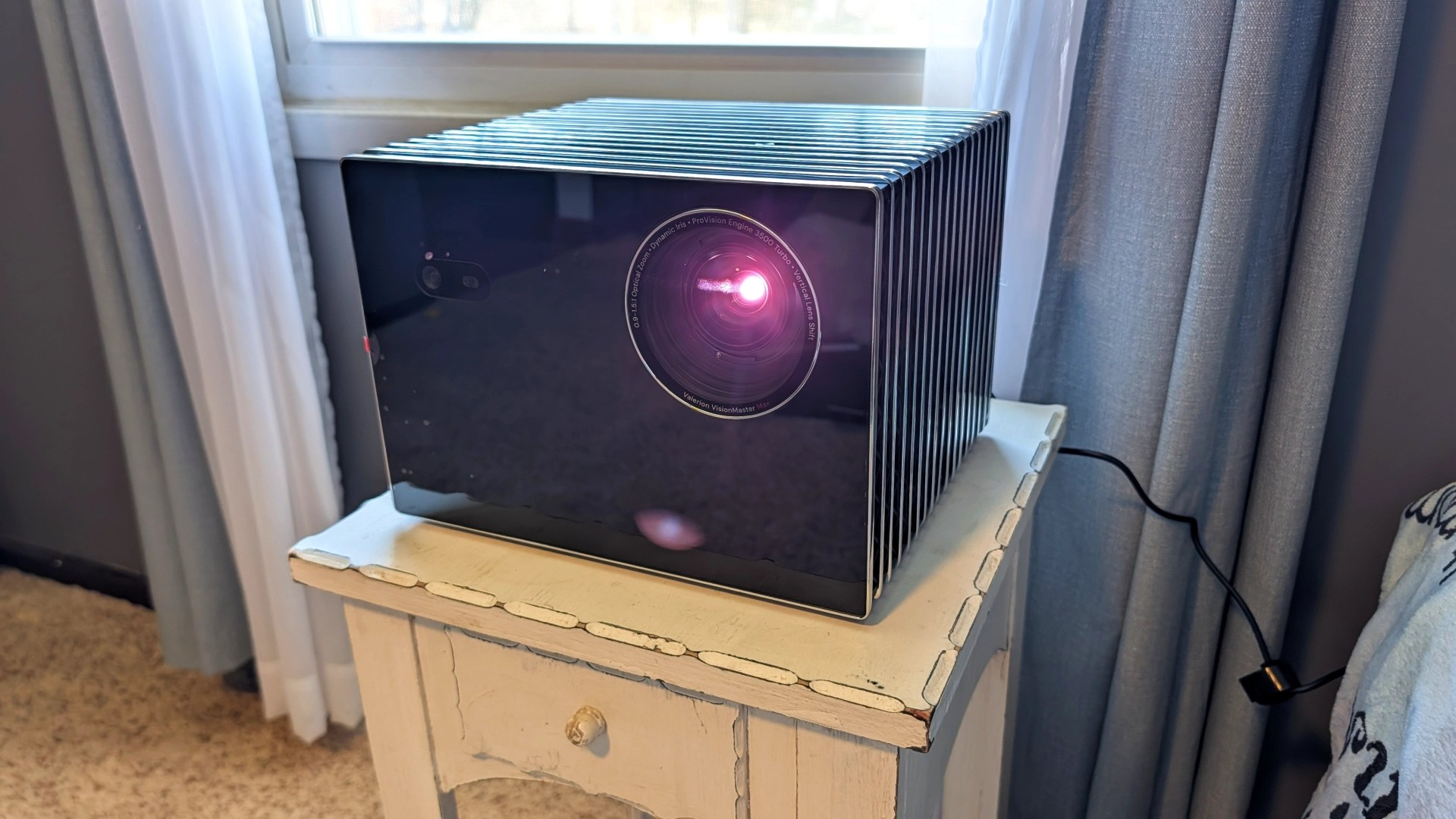

The first thing that stands out about the VisionMaster Max is that it feels substantial. Many projectors in the sub-five-thousand-dollar category rely heavily on lightweight plastic housings, but Valerion went in a different direction here. It’s solid and surprisingly heavy.
The chassis is dense and rigid, finished in a glossy black shell that gives it a premium appearance. It weighs about 7.4 kilograms (~16lbs) , which is not something you casually move around after installation. That weight actually works in its favor because it adds structural rigidity that helps keep the optical components stable over time.
With strong brightness, accurate color, and flexible installation options, the VisionMaster Max positions itself as a powerful centerpiece for a modern home theater setup.
In projectors, even tiny amounts of chassis flex can translate into focus inconsistencies across the screen. A rigid housing helps keep the internal lens assembly properly aligned, and the VisionMaster Max feels built with that kind of long-term stability in mind.
From a design standpoint, it looks right at home in a media room or home theater rack. It is sleek without trying too hard to be flashy, and it carries the kind of presence you expect from a high-end piece of home theater hardware.
It looks sharper than most projectors I’ve spent time with and it signals that everything found inside is likely to be premium grade.
Remote & Interface Experience
The included remote control reinforces that same premium positioning. It has a satisfying weight and uses mechanical buttons with strong tactile feedback. There are dedicated shortcuts for streaming services, autofocus adjustments, voice control, and even a button for triggering the projector’s AI processing features. You didn’t think we’d talk about new tech without using that term, did you?
The overall feel of the remote is good, but it is not perfect. The backlighting only activates after pressing a button, which makes it harder to locate keys in a dark theater before interacting with it. Continuous illumination would have been a better choice for a projector designed for dim environments. Or, as I’ve seen elsewhere, more buttons or parts of the remote with light behind it.
Navigation within the projector’s Google TV interface is generally smooth, thanks to the internal processor, but some quirks show up in the deeper settings menus. When adjusting advanced hardware parameters such as the iris or calibration controls, the back button occasionally exits all the way to the main Google TV home screen rather than stepping back one menu level.
It is not a deal-breaker, but it does make deeper adjustments more tedious than they should be. And, really, this may be addressable in a software update.
Installation & Lens Flexibility
One of the more interesting aspects of the VisionMaster Max is its optical flexibility.
Out of the box, the projector ships with a motorized zoom lens offering a throw ratio between 0.9:1 and 1.5:1. In practical terms, that means it can produce a one-hundred-inch image from roughly two to three meters away.
Motorized zoom and focus adjustments are handled through the remote, making setup fairly straightforward once the projector is physically mounted or placed.
Where things get more unusual is the interchangeable lens system. This is not something commonly found in projectors at this price point. The VisionMaster Max allows the factory lens to be swapped for optional alternatives that extend the throw ratio.
With the extended lens installed, the projector can reach up to a 2.0:1 throw ratio, allowing the same one-hundred-inch image to be produced from over four meters away. That kind of flexibility opens up installation possibilities for deeper rooms or rear-shelf placements where shorter throw lenses would struggle.
I initially set up the review unit in a room with a flat grey wall just to get a feel for the controls, size, etc. The room, which is around ten feet wide, was perfectly suited for making the big ~100″ display as there were no plants or objects to get in the way of the projected image. Were there not an 85″ TV already mounted on the opposite side of the room, I’d give very serious consideration to leaving the VisionMaster Max where it was.
Lens Shift & Alignment
The projector also includes a fully motorized vertical lens shift system with up to ±105 percent adjustment. That’s really helpful if you’re mounting the unit or suspending it from the ceiling.
In practical terms, this means the projector can be mounted significantly above or below the screen while still maintaining proper image alignment. Ceiling mounting or placing the projector low on a table both remain viable options without relying heavily on digital keystone correction.
One limitation worth noting is the absence of horizontal lens shift. The projector must be centered horizontally with the screen. If it is placed off-axis, digital keystone correction becomes necessary, which reduces effective resolution.
For those fortunate enough to have a dedicated theater room, I’m envious. The VisionMaster Max could sit perfectly on a pedestal or a tripod, or suspend from a ceiling. Likewise, it can project from both sides of a screen. From everything I can see and tell, there would be very little toggling or adjustment once in place. It’s the sort of thing you can build a room or experience around.
Brightness & Laser Light Engine
The VisionMaster Max uses an RGB triple-laser light engine instead of a traditional lamp or single-laser phosphor system.
This approach uses separate red, green, and blue laser diodes to generate the image. Removing the need for a color wheel improves color purity and eliminates one mechanical component that could eventually fail.
Valerion rates the projector at 3,500 ISO lumens. That level of brightness gives the projector plenty of headroom for larger screens and moderate ambient light environments. For a dedicated theater room, it has more than enough output.
There is also a brightness enhancer mode that pushes the laser system harder to increase light output further. The tradeoff is reduced color accuracy and a noticeable green bias in the image. Most users interested in image quality will likely leave that setting disabled or not even know it exists, really.
Contrast and Color
Contrast, as I am learning, has historically been one of the weaker areas for single-chip DLP projectors. The VisionMaster Max attempts to overcome this through a combination of hardware and software techniques.
The native contrast ratio sits in the range of roughly 2000:1 to 4000:1 depending on configuration. To improve perceived black levels, Valerion includes a six-step adjustable iris system that physically limits the amount of light leaving the lens. It’s here, with my grey wall, that I came away impressed with how things looked with black on the screen, and also curious how it would appear with a proper screen in place.
Closing the iris reduces stray light and improves black levels significantly. In practice, settings around the middle range provide the best balance between brightness and contrast. All of the preset stuff, from what I found, was tuned nicely for a “take it out of the box and get to watching something” experience.
The projector also employs a dynamic contrast algorithm that adjusts the laser output based on scene brightness. In darker scenes, the system reduces the light output while adjusting the gamma curve to preserve shadow detail.
It works reasonably well, although aggressive transitions can sometimes produce visible shifts in brightness during rapid scene changes. And if I am being totally transparent, I only noticed this because I was looking for it and because I had seen indication of this in another review.
Color is where the VisionMaster Max really shines.
Because it uses pure RGB laser light sources, it is capable of covering more than the entire color gamut. Out of the box, color accuracy is already very strong when using the Filmmaker Mode preset. Measurements show extremely low color error levels in SDR content, making the projector capable of reference-level performance without extensive calibration.
HDR performance is slightly less precise by default but still very good overall, and advanced calibration controls allow further fine tuning if needed.
For enthusiasts who enjoy dialing in every last detail, the projector includes extensive white balance and color management tools. Pretty much all industry video standards are represented here. Speaking of which…
HDR & Video Processing
The VisionMaster Max supports a wide range of HDR formats including HDR10, HDR10+, Dolby Vision, and HLG.
Because projectors cannot reach the same brightness levels as televisions, HDR tone mapping becomes critical. The projector compresses higher-brightness content into its available light range to maintain visible highlight detail.
The result still delivers strong HDR impact for a projector, though it naturally cannot match the peak brightness of modern OLED or Mini-LED televisions.
Several picture modes are available, including Theater, Filmmaker, Standard, and Vivid. For most viewing situations, Theater or Filmmaker modes deliver the most natural results.
The projector also supports active 3D playback, and its high brightness helps compensate for the dimming effect that comes with shutter glasses. I did not test this out.
Gaming Performance
The VisionMaster Max also performs surprisingly well as a gaming display.
It includes two HDMI 2.1 ports capable of handling high-bandwidth signals. With the appropriate settings enabled, input latency can drop to around eighteen milliseconds at 4K 60hertz and even lower at higher refresh rates.
At 1080p with high refresh rate modes enabled, input lag can reach around five milliseconds, making it responsive enough for competitive gaming.
The projector also supports Auto Low Latency Mode, automatically switching into game mode when a compatible console is detected.
For gamers who want the scale of a giant projection screen without sacrificing responsiveness, this is one of the more capable projectors available in its price class.
Spending a few days with a PlaySation 5 plugged really gave me the itch to change my entire basement setup. It’s not a massive room, but there’s something about a massive image on the wall that’s bright, crisp, accurate, and responsive across all video sources. I’m low-kwy glad I am not a more serious gamer because it’s a lot of fun to play on something that big.
Smart Features & Connectivity
Internally, the projector runs Google TV powered by a MediaTek Pentonic processor paired with four gigabytes (4GB) of RAM and 128 gigabytes of storage.
The interface feels smooth and responsive, and most major streaming applications are available directly through the platform. Setup is about as easy as it gets if you’ve already had a Google TV in the home. Logins and settings are largely preserved, expediting the process of getting into your favorite apps and services.
Connectivity includes Wi-Fi 6E, Bluetooth 5.2, Chromecast support, AirPlay 2, and compatibility with smart home systems such as Google Home, Alexa, Apple HomeKit, and Control4.
There is also a Gigabit Ethernet port for wired networking, though the Google TV platform itself currently seems to limit throughput to around one hundred megabits per second.
Noise & Cooling
Triple-laser projectors generate a fair amount of heat, and the VisionMaster Max relies on active cooling to manage temperatures.
Fan noise sits around a reported 35 decibels at full power. During a movie with normal audio levels, it blends into the background fairly easily.
In quieter scenes, the hum can become noticeable, though switching to Eco mode lowers the fan speed and reduces overall noise. Depending on how and where you have the projector installed, you may never even think about the sound or heat that comes from the unit.
Built-in Audio
The projector includes dual 12-watt speakers with support for Dolby Atmos and DTS virtual processing.
For casual viewing or temporary setups, the built-in audio works fine. Dialogue remains clear and volume levels are respectable.
That said, anyone installing a projector of this caliber will almost certainly pair it with an external sound system. A dedicated surround setup simply matches the scale of a large projected image much better.
Even as loud or clear as high-end projectors can get with audio, I always recommend wiring to, or connecting wirelessly to speakers. Not just for overall enjoyment, but because it’s still a bit weird to have your image and audio coming from opposing ends of a room. And let’s be honest, we don’t want to crowd around the projector for whispered conversations.
Latency is a consideration if you opt for wireless, of course. If you’re spending the sort of money that the VisionMaster Max commands, you likely have no reservations about running a few wires through the ceiling to the wall.
Price & Value
The VisionMaster Max launched through crowdfunding before settling into a retail price around $5,000. It’s considerably lower now at $4,000, or 20% off from where it started.
As someone who’s still learning all of the deeper tech around projectors and TVs, I often look to other outlets for better understanding of how something might stack up. We’re not a benchmarks and bleeding tech website so I’ll always suggest checking others for the really fine details and testing.
At the $4,000 level, it competes with entry-level home theater projectors from established brands such as Sony and JVC, many of which use different imaging technologies like Liquid Crystal on Silicon (LCoS).
What Valerion brings to the table is a combination of extremely wide color reproduction, high brightness, flexible optics, and strong gaming performance.
For home theater enthusiasts who want the advantages of an RGB laser light engine without stepping into far higher price brackets, the VisionMaster Max makes a compelling case. And from all other sources I checked, it’s a winner on nearly every front.
Final Thoughts
The Valerion VisionMaster Max is clearly aimed at enthusiasts who want a serious home theater experience without entering the ultra-high-end projector market. You’re already know whether you are in this range of consumer/user or not.
Awarded to products with an average rating of 3.75 stars or higher, the AndroidGuys Smart Pick recognizes a balance of quality, performance, and value.
Products with this distinction deserve to be on your short list of purchase candidates.
It’s not priced as a tweener projector nor does it come anywhere near a middle-of-the-road product. This is not a step up from the $200-$1,000 projectors that most homes use so much as it’s an entire flight of stairs. You have to be deliberate about upgrading to something like this.
It delivers excellent color performance, strong brightness, flexible installation options, and gaming responsiveness that many projectors simply cannot match.
There are a few rough edges, including some interface quirks, limited horizontal lens adjustment, and a dynamic contrast system that can occasionally be a little overzealous. Some of this I suspect gets ironed out with a software update.
Even so, the overall package is impressive. With its triple-laser light engine, wide color capability, and enthusiast-grade feature set, the VisionMaster Max positions itself as a powerful option for anyone building a dedicated home theater setup around a large projection screen.
